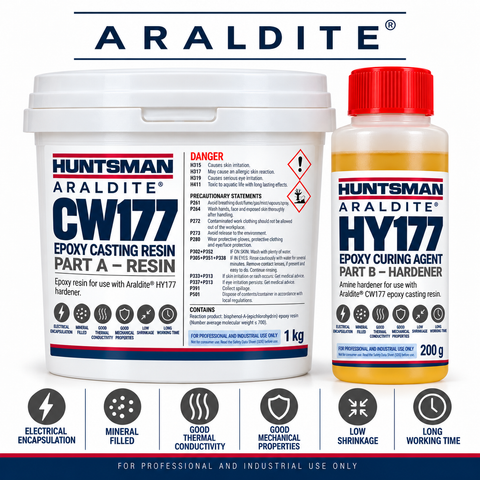

ARALDITE® CW 177 / ARADUR® HY 177 Epoxy Casting System

ARALDITE® CW 177 / ARADUR® HY 177 Epoxy Casting System

ARALDITE® CW 177 with ARADUR® HY 177 is a mineral-filled epoxy casting and encapsulation system designed for professional electrical and industrial applications.

The system combines good flow and processing characteristics with electrical insulation, mechanical strength and adhesion, making it suitable for potting and protecting a wide range of electrical and electronic components.

Key Features

• Mineral-filled epoxy casting system
• Excellent electrical insulation
• Good mechanical strength
• Strong adhesion
• Room-temperature curing
• Good flow for casting and encapsulation
• Long working time
• Suitable for professional and industrial applications

Typical Applications

Suitable for the casting, potting and encapsulation of:

• Electrical and electronic components
• Transformers and coils
• Capacitors and filters
• Sensors and connectors
• Electrical assemblies
• Industrial components requiring electrical insulation and protection

Mixing Ratio

CW 177 Part A : HY 177 Part B

By weight: 5:1
By volume: 3:1

For best results, measure both components accurately and mix thoroughly until completely uniform.

Available Kit Sizes

1.2 kg Kit

• 1 kg CW 177 Part A
• 200 g HY 177 Part B

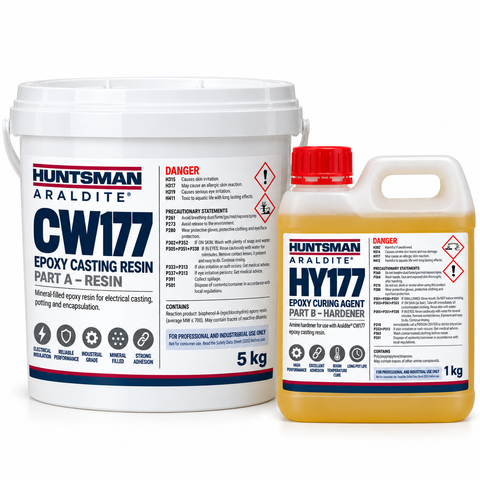

6 kg Kit

• 5 kg CW 177 Part A
• 1 kg HY 177 Part B

Both kit sizes are supplied at the correct 5:1 ratio by weight.

Important – Mix CW 177 Before Use

CW 177 contains mineral fillers which may settle during storage. Part A should be thoroughly homogenised before use, particularly when only a portion of the container is being measured.

After homogenising Part A, accurately measure the required amount of CW 177 and HY 177 and mix thoroughly, taking care to minimise air entrapment.

Technical Information

For professional and industrial use. Always refer to the current Technical Data Sheet (TDS) and Safety Data Sheet (SDS) before use.
